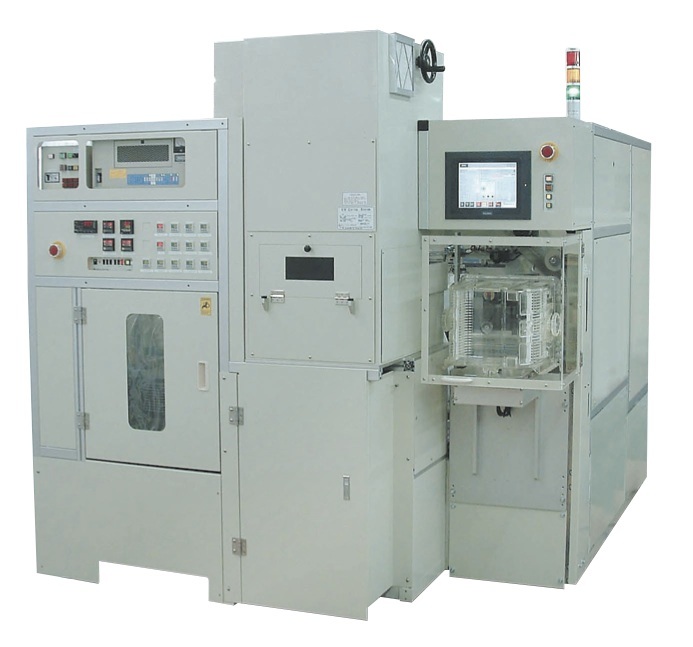

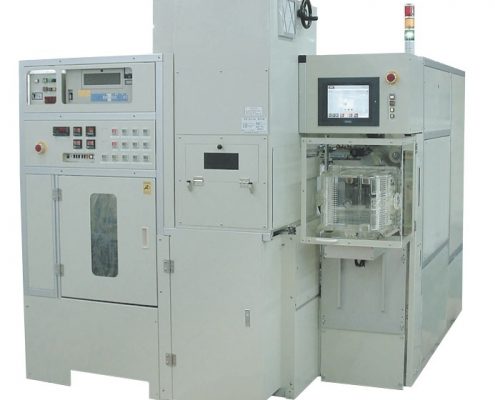

300mm 全自動貼片機附撕片功能
(ATM-12000DR)
特性
- 能讓12吋150um厚度晶圓精確對準。
- 真空室可消除氣泡，減少損壞晶圓。
- 通過獨特的方法在沒有任何壓力情況下撕除晶圓上的BG膠帶。
規格表
| Item | ATM-12000DR |
| Throughput | 40 wafers/h (Depend on data setting) |
| Wafer Size | 8″, 12″ |
| Frame Size | 8″, 12″ |
| Frame Width | 8″: 300mm; 12″: 400mm (Removal tape width: 50mm) |
| Utilities – Power | AC200V Three phase 50/60Hz 5.0 KVA |
| Utilities – Air | Pressure 0.5Mpa 200N1/min |
| Utilities – Vacuum sourse | Using venturi valus |
| Dimensions | D2,800 X W1,800 X H1,800 mm |
| Weight | 2,000kg |
https://www.toyo-adtec.com.tw/wp-content/uploads/2016/11/ATM-8200-photo.jpg
383
262
sales
https://www.toyo-adtec.com.tw/wp-content/uploads/2016/10/LOGO-有Slogan-左-暗藍-01.png

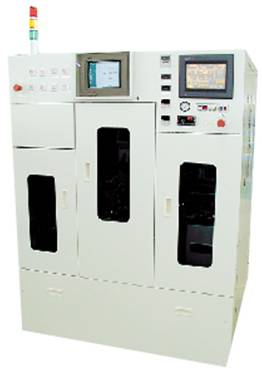

sales2016-11-02 15:40:142019-04-24 16:25:28200mm 晶圓全自動貼片機 (ATM-8200)
https://www.toyo-adtec.com.tw/wp-content/uploads/2016/11/ATM-8100S.jpg
308
261
sales
https://www.toyo-adtec.com.tw/wp-content/uploads/2016/10/LOGO-有Slogan-左-暗藍-01.png

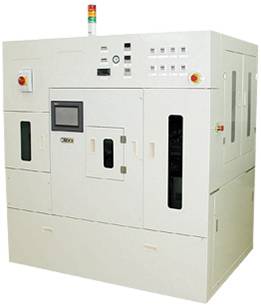

sales2016-11-02 15:33:242019-04-24 16:25:50200mm 晶圓全自動貼片機 (ATM-8100 系列)
